Author Topic: Turbo Bracing  (Read 3124 times)

0 Members and 1 Guest are viewing this topic.

RonnieJ

  • Sr. Member
  • *****
  • Posts: 131
    • JDL Auto Design
Turbo Bracing
« on: February 08, 2015, 10:39:26 AM »
I thought I would start this since I see it ever few weeks on all forums SQ. People offering manifolds prior to us were adamant about "bracing the turbo" The issues is they were just doing it wrong. That has lead to bad information being regulated by most of the SQ community.

1. A brace is needed when using thin wall normal exhaust tubing 16 gauge
2. Thin wall exhaust tubing has been used on 100% race applications where ever pound saved matters
3. Thick wall/Schedule 40 pipe is used for street/track applications as it can handle the weight and street use as well as constant heat cycles seen by street cars
4. If you want to run a thin wall turbo manifold you must brace the turbo and the wastegate as the weight of the two will easily crack the thin wall
5. You do not brace the manifold/header as its been done before
6. Bracing the manifold does not allow for expansion
7. Manifolds expand and contract with heat cycles
8. The combination of weight and the manifold being braced doesnt allow for that expansion
9. Doing so causes the weakest part to give

You all know how its been before but here are some photos of braces done properly.

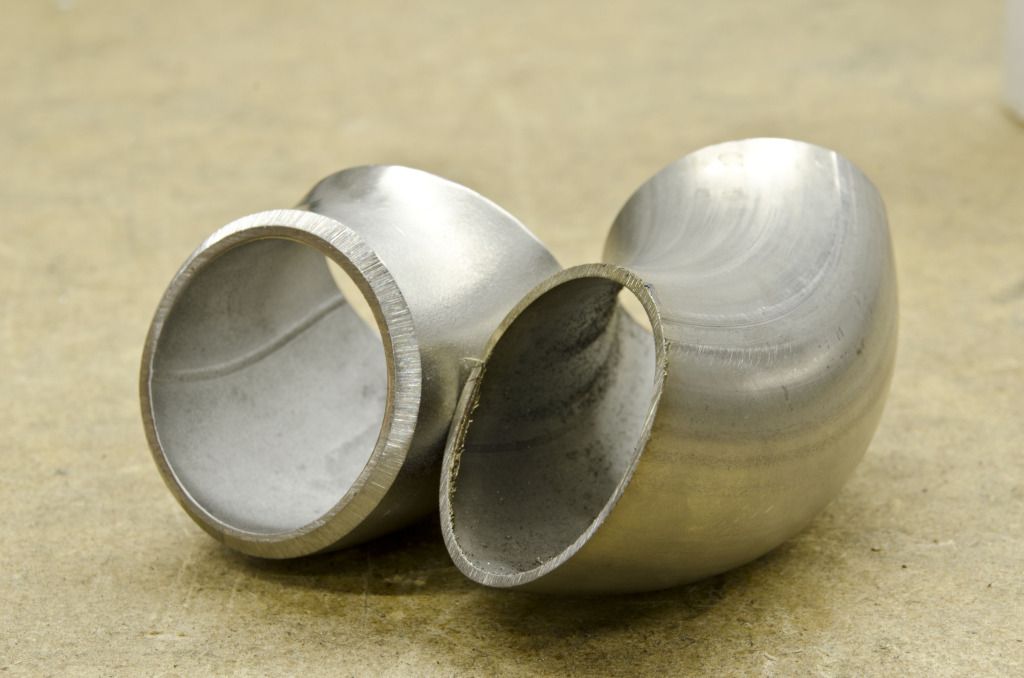

Here is a shot of Schedule 40 next to 16 gauges stainless so you get the idea of different sizes

JDL Auto Design<--- Clicky Click
Turbo Systems/Manifolds/Intercoolers/Turbochargers
Click here to Like us on Facebook
Instagram JDL_Auto_Ron

FunkyPhil

  • Administrator
  • Hero Member
  • *****
  • Posts: 1299
Re: Turbo Bracing
« Reply #1 on: February 08, 2015, 02:34:32 PM »
The fact that you can put a deep bevel shows another reason as to why they are so strong. On turbo V8 "racr" setups, you will usually see the turbo braced/mounted to the chassis.

Love the 2.3 Lima pic!
87 Conquest Tsi: 519whp 519wtq 7.09@102--10.95@122
CLICK TO SEE BUILD

RonnieJ

  • Sr. Member
  • *****
  • Posts: 131
    • JDL Auto Design
Re: Turbo Bracing
« Reply #2 on: February 08, 2015, 03:18:44 PM »
A lot of OEM turbo cars also brace the turbo. VW/Audi braces to the block since they are bottom mounts. Even the ST had a turbo brace with the stock turbo.

Does the SQ come with a brace on a 100% stock setup?
JDL Auto Design<--- Clicky Click
Turbo Systems/Manifolds/Intercoolers/Turbochargers
Click here to Like us on Facebook
Instagram JDL_Auto_Ron

FunkyPhil

  • Administrator
  • Hero Member
  • *****
  • Posts: 1299
Re: Turbo Bracing
« Reply #3 on: February 08, 2015, 11:09:46 PM »
no brace on the SQ.
